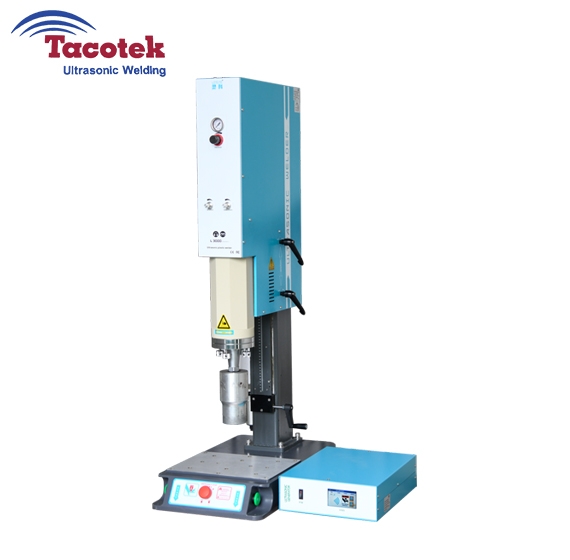

20kHz 2000W/2600W L3000 Standard Digital Ultrasonic Plastic Welding Machine

  • Giá: Liên hệ
  • Tình trạng: Còn hàng
  • Máy hàn siêu âm L3000 Standard là sản phẩm chất lượng nhất trên thị trường, Liên hệ Chú Kiều 0983 122 101 để được tư vẫn và hỗ trợ tốt nhất.
  • Số lượng:
    - +


TACOTEK ULTRASONIC EQUIPMENT CO., LTD is a company specializing in:
- Supply and repair ultrasonic welding machines.

L3000 Standard ultrasonic welding machine is the best quality product on the market, Contact Uncle Kieu 0983 122 101 for the best advice and support.

Features of L3000 Standard Ultrasonic Plastic Welding Machine

-Integrate multiple welding control technologies and intelligent management: amplitude management, mold management, quality management, data management, safety management.
-Automatic frequency tracking function, with a frequency tracking range of ± 500Hz. Pressure control: welding pressure control, cooling pressure control.
-Intelligent control feedback function: real-time automatic frequency tracking and locking function, circuit constant voltage function.
-The amplitude can be built-in or external, with an adjustable amplitude of 10% -100%, different plastics can be welded without replacing the booster.
-Data management, built-in storage or transmission of welding data, intelligent data tracking.
-Control accuracy: Control time accuracy of 0.01 seconds, upper mold horizontal adjustment (optional: XY welding platform).
-Start mode: pulse start mode, automated assembly line mode, European safety mode.
-IoT function: RS232/485 data docking.
-Trigger mode:time trigger.
-Five operating modes of digital type: manual mode, time mode, energy mode, non-standard mode, and continuous vibration mode.
-Two operating modes of analog type: manual mode, time mode.
-The press column adopts a dovetail groove high-strength design, and the mechanical strength of the downward pressure rebound is high, without deviation.
-Operating mode that complies with international CE and FCC certification standards, as well as European CE safety regulations.

1.Specifications of L3000 Standard Ultrasonic Plastic Welding Machine
Ultrasonic Welding Machines provided by Tacotek Ultrasonic Welding Co., Ltd always bring customers quality products

机型 Model

L3000 STD analog

频率 Frequency

20kHz

15kHz

功率 Power

2000W

2600W

3200W

2600W落地款

2600W

3200W

3200W落地款

输入电压 Input Voltage

AC220V

AC220V

AC220V

AC220V

AC220V

AC220V

AC220V

气缸规格 Cylinder Size (mm)

50 X 75 / 63 X 75

63 X 75

80 X 75

63 X 75

63 X 75

80 X 75

80 X 75

机身行程 Machine Journey

100-575mm

100-572mm

100-572mm

100-572mm

80-527mm

80-537mm

80-537mm

输出时间 Oscillation Time

0.01-9.99s

0.01-9.99s

0.01-9.99s

0.01-9.99s

0.01-9.99s

0.01-9.99s

0.01-9.99s

输入气压 Air Pressure

>1,≤7 bar

>1,≤7 bar

>1,≤7 bar

>1,≤7 bar

>1,≤7 bar

>1,≤7 bar

>1,≤7 bar

焊接面积 Welding Capability

Φ170mm

Φ220mm

Φ300mm

Φ220mm

Φ220mm

Φ300mm

Φ300mm

操作开关 Operation Switch

双手启动,前部有紧急制动,也可附加外部开关

Two-hand release,emergency stop button at the front,and adding extemal control switch supported.

外形尺寸 Size(mm)

压机 Press

680 X 400 X 1636

680 X 400 X 1636

680 X 400 X 1636

935 X 650 X 2130

680 X 400 X 1636

680 X 400 X 1636

935 X 650 X 2130

电箱(模拟机型) Generator (Analog Type)

530 X 405 X 155

530 X 405 X 155

530 X 405 X 155

530 X 405 X 155

530 X 405 X 155

530 X 405 X 155

530 X 405 X 155

净重

Weight

模拟机型压机 (Analog Press)

74.5kg

74.5kg

76.5kg

168kg

74.5kg

76.5kg

168kg

电箱(模拟机型) Generator (Analog Type)

14.5kg

14.5kg

14.5kg

14.5kg

14.5kg

14.5kg

14.5kg

工作模式 Mode

模拟机型:时间模式/手动调模

Digital Type:Time Mode/Manual Mode

2. Application of ultrasonic welding machine

At present, ultrasonic welding machine is widely used in industries such as auto parts, printing consumables, toys, daily necessities, beauty tools, non-woven fabrics, etc. The advantages of L3000 Standard ultrasonic welding machine bring unlimited. For large, small or medium-sized production facilities, the use of ultrasonic welding machines can help save labor, time and money and improve work efficiency.

Reputable supplier and designer of L3000 Standard Ultrasonic Plastic Welding Machine

Tacotek Ultrasonic Equipment Co., Ltd. is a unit specializing in consulting, designing and manufacturing Ultrasonic welding machines for all civil and industrial sectors. Design and manufacture to bring the automatic ultrasonic welding machine system into industry to reduce labor, reduce management costs, increase productivity in production and improve efficiency for businesses.

Tacotek Ultrasonic Equipment Co., Ltd is a partner of many big companies such as:
Khang Gia Automation Company, Nano dry, Thoi Thanh Binh Medical Equipment, United Packaging, Phu Bao Group, T.C Vietnam Electronic Solutions, ...

The collective staff is always enthusiastic, determined, creative, demanding and responsible for customers through solving the actual and essential needs of customers. Tacotek brings super welding machines. Sound quality and reputation.

- Design and process ultrasonic welding molds as required.

- Manufacturing plastic welding equipment by ultrasonic welding technology, by heat, by friction...

- Provide ultrasonic welding mold

- Provide ultrasonic welding vibrating rod

With over 20 years of experience in ultrasonic welding,

With the criterion of BEST QUALITY - BEST PRICE, we always support and advise customers for FREE on the right technology to bring the highest efficiency, and at the same time provide the most PRESTIGE warranty and repair service.
